When businesses deal with a high volume of orders, a wide range of SKUs, and frequent order fluctuations, traditional warehouse models often fall short. They suffer from issues like low space utilization, inefficient manual operations, an inability to handle high throughput and peak demands, and a lack of fine-grained management capabilities.
A great way to solve these challenges is by adopting an Automated Storage and Retrieval System (AS/RS).
You might be thinking, “I don’t know anything about AS/RS, or how to even begin implementing it in my warehouse. Is this really right for me?” This article aims to answer those questions. I’m confident that after reading this, you’ll have a clear idea of whether an AS/RS is a smart choice for your business.
What is an automated storage and retrieval system?
The Definition of AS/RS
You can think of an AS/RS as a super-smart multi-story parking garage, but instead of cars, it stores goods.
- A traditional warehouse is like you parking your car in a spot and having to remember where it is, then manually retrieving it later. The entire process relies on human effort.
- An AS/RS warehouse is like handing your car over to a smart robot, telling it where to store it, and watching it automatically transport the car to the designated spot. When you need the car, you simply send a command to the system, and the robot automatically retrieves it and brings it to you.
In an AS/RS, this “smart robot” is typically called a stacker crane. It can move up, down, left, and right between tall storage racks, precisely transporting pallets or totes to their assigned storage locations and retrieving them when needed.

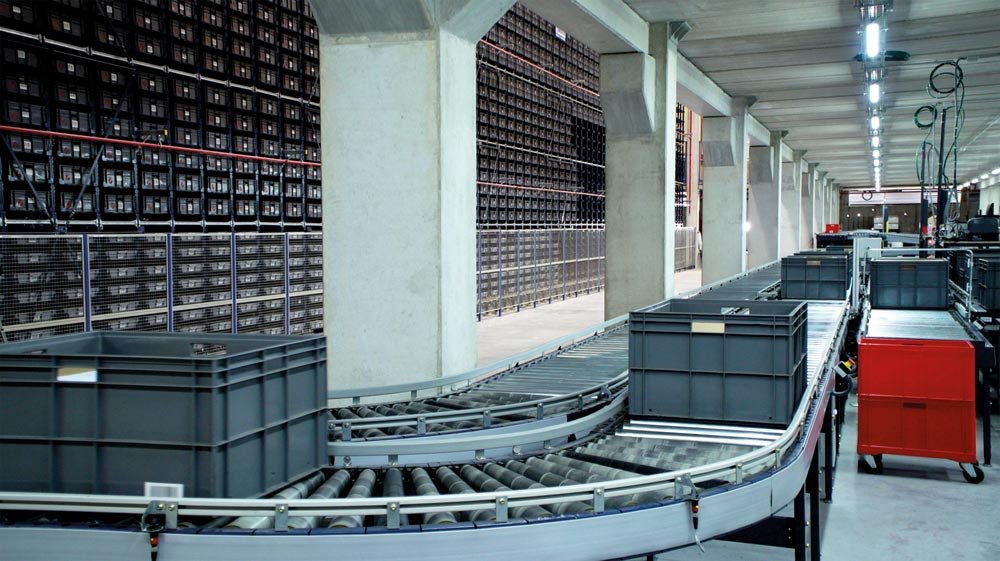

Simply put, an AS/RS is an automated system made up of tall storage racks, aisles, and a stacker crane. Its main functions are:
- Automated Storage: Automatically and efficiently storing goods in designated locations within tall racks.
- Automated Retrieval: Quickly and accurately retrieving needed goods from the racks based on a command.
The entire process is controlled by a computer system, which minimizes manual labor and dramatically boosts warehouse efficiency, storage density, and accuracy.
The Core Components of an AS/RS
A complete AS/RS primarily consists of the following two parts:
1. Hardware (The Muscles)
These are the physical components you can see and operate in the warehouse. They are the “muscles” that make automated storage and retrieval possible.
- Storage Racks: These are the “skeleton” of the AS/RS. Unlike the low shelves of traditional warehouses, AS/RS racks can be dozens of meters high and are specially designed for precise operation by the stacker crane. They are typically modular, allowing for flexible configuration based on warehouse space and storage needs.
- Stacker Crane: This is the “core executor” or “robot” of the AS/RS. It usually runs in a specific aisle between the racks. The stacker crane can move at high speeds both vertically and horizontally, precisely transporting palletized goods or totes from the input station to a designated rack location, or vice versa, from a rack to an output station.
- Conveyor System: This is the “circulatory system” of the AS/RS. It is responsible for moving goods from the outside environment (like a truck unloading area or production line) to the AS/RS input station. When retrieving goods, it transports them from the AS/RS to the picking or staging area. It ensures a continuous flow of materials.
- Auxiliary Equipment: This includes various devices that assist with handling, identification, and sorting, such as shuttles, lifts, and barcode/RFID scanners.
2. Software (The Brains)
This is the “brain” that controls the entire system. It is crucial for ensuring the system operates efficiently and accurately.
- Warehouse Management System (WMS): This is the “command center” for the entire system. The WMS is responsible for high-level decisions, such as:
- Managing all material and inventory information.
- Receiving and processing tasks for inbound, outbound, and transfer operations.
- Optimizing storage strategies, such as deciding which location a product should be stored in to enable more efficient picking or higher storage density.
- Warehouse Control System (WCS): This is the “communication bridge” between the WMS and the hardware. The WCS translates high-level commands from the WMS (e.g., “retrieve the pallet of item #123”) into low-level instructions that the stacker crane can execute (e.g., “move to X coordinate, ascend to Y height, extend forks to pick up the load”). It monitors the real-time status of all hardware devices to ensure they work together seamlessly.
Types and Comparison of AS/RS
The Main Types of AS/RS
We can divide AS/RS into two main categories, which handle different sized goods and have distinct structures and functions.
1. Unit-load AS/RS
- What it handles: This system is primarily used for storing and retrieving full pallets or large containers.
- System Structure:
- Racks: Composed of very tall racks, each level can hold one or more pallets.
- Stacker Crane: Uses a large pallet stacker crane that moves at high speed within the rack aisles, using telescoping forks to store or retrieve full pallets.
- Advantages:
- High Storage Density: It makes full use of a warehouse’s vertical space, making it ideal for storing large quantities of uniform products.
- High Throughput: The handling speed is fast, allowing it to process high volumes of inbound and outbound goods.
- Application Scenarios:
- Suitable for raw material or finished goods warehouses in manufacturing, such as for automotive parts, food and beverages, and chemical products.
- Large logistics distribution centers that handle full pallet shipments from suppliers.
2. Mini-load AS/RS
- What it handles: This system is specifically designed for storing and retrieving small items or goods in totes and cartons.
- System Structure:
- Racks: The rack units are smaller, and each level can hold multiple totes or cartons.
- Stacker Crane: Uses a mini-load stacker crane, which is smaller and faster, and can carry one or more totes at a time.
- Advantages:
- High Picking Efficiency: It enables a “goods-to-person” picking model, where the system automatically brings the tote containing the goods to the picking workstation. Employees don’t have to walk around the warehouse, which dramatically boosts picking efficiency and accuracy.
- High Flexibility: It’s ideal for handling orders with a high variety of items and small quantities.
- Application Scenarios:
- Distribution centers for e-commerce and retail, used for processing a massive number of single-item or multi-item orders.
- Electronics manufacturing and pharmaceutical industries, used for storing high-value components or small packaged medicines.
AS/RS Types and Comparison
Here is a table comparing the two main types of Automated Storage and Retrieval Systems (AS/RS): Unit-load AS/RS and Mini-load AS/RS.
| Feature | Unit-load AS/RS | Mini-load AS/RS |
| Handling Object | Full pallets, large containers | Totes, cartons, small items |
| Storage Density | High, maximizes vertical space | Very high, stores more SKUs per area |
| Main Function | Bulk storage, high throughput | Item picking, fast retrieval |
| Representative Equipment | Pallet stacker crane | Mini-load crane (or shuttle) |
| Core Advantage | Maximizes warehouse capacity, high throughput | Extremely high picking efficiency, “Goods-to-Person” |
| Typical Applications | Manufacturing, large-scale logistics | E-commerce, retail, pharmaceuticals, electronics |
The Key Advantages of AS/RS
Maximized Space Utilization
Traditional warehouse models often only use a few meters of vertical space. AS/RS, however, can raise rack heights to 25 meters or more. This is like converting a flat parking lot into a multi-story parking garage skyscraper.
Quantitative data: AS/RS can increase warehouse storage density to 3 to 5 times that of a traditional warehouse. This means a warehouse that used to require 10,000 square meters might now only need 2,000 square meters to store the same amount of goods. This significantly saves on expensive land and construction costs.
Extremely High Operational Efficiency and Throughput
An AS/RS can operate 24/7 without interruption, unaffected by lighting conditions or human fatigue. Stacker cranes and conveyor systems handle materials at speeds far beyond manual capability.
Quantitative data: A typical AS/RS can handle 40 to 60 pallet cycles per hour (one cycle is a storage or retrieval operation). In contrast, manual forklift operations are much less efficient and are prone to traffic jams and human error. For picking operations, the “goods-to-person” model can boost efficiency by 2 to 3 times, drastically shortening order processing times.
Significantly Reduced Operational Costs
While the initial investment in an AS/RS is high, it leads to substantial long-term operational cost savings.
- Labor Costs: AS/RS replaces a large amount of manual handling and picking work, directly reducing the need for warehouse operators and saving a huge amount on wages and benefits.
- Energy Costs: Especially in cold chain warehouses, an AS/RS can operate automatically in sub-zero temperatures. This reduces the need for high-energy equipment (like lighting and heating) and the time employees have to spend in these environments, leading to significant energy savings.
Improved Workplace Safety
One of the biggest safety risks in a warehouse is the interaction between forklifts and pedestrians. An AS/RS completely separates people from equipment that is operating at high speeds and heights.
Quantitative data: By eliminating the need for people to walk through rack aisles and work at heights, an AS/RS can reduce warehouse workplace injuries to almost zero. This not only protects employee safety but also saves the company from losses related to accidents, such as compensation and business downtime.
Superior Inventory Management and Accuracy
The core of an AS/RS is its powerful software system (WMS and WCS). The location of every incoming pallet or tote is precisely recorded, allowing for real-time tracking.
Specific Benefits:
- Inventory Accuracy: An AS/RS can increase inventory accuracy to over 99.9%, virtually eliminating manual counting and recording errors.
- Fine-Grained Management: The system can automatically execute strategies like First-In, First-Out (FIFO) or Last-In, First-Out (LIFO), ensuring product freshness and proper batch management, which is crucial for industries like food and pharmaceuticals.
- Visibility and Traceability: Companies can track the status and location of every item in real-time, making batch traceability simple. This is especially important for handling unexpected situations like product recalls.
The Importance of High-Quality Racks
The Primary Guarantee of Safety
- Structural Integrity: The rack system of an AS/RS is often over 20 meters high and supports thousands of pallets, with a total weight that can reach hundreds or even thousands of tons. A structural flaw in a single rack unit could lead to a catastrophic chain reaction.
- High-Precision Manufacturing: The stacker cranes in an AS/RS need to move at high speeds within the rack aisles with extreme precision. The manufacturing tolerances for the verticality, horizontal alignment, and position dimensions of the racks must be controlled to the millimeter level. If the racks are slightly warped or uneven, it can cause the stacker crane to get stuck, prevent the forks from accurately storing or retrieving goods, or even cause a safety accident.
A Direct Factor in Efficiency and Reliability
- Guiding the Stacker Crane: The racks are not just containers for storing goods; they also act as the guide rails for the stacker crane’s movement within the aisles. A well-designed and manufactured rack ensures the stacker crane can move smoothly and without obstruction at high speeds, which is essential for the system’s high throughput.
- Precise Locations: The design of each location is precisely calculated to match the stacker crane’s fork dimensions. High-quality racks ensure every position is perfectly aligned, allowing the system to complete each storage or retrieval action on the first try, avoiding repeated attempts and failures, thus guaranteeing the system’s reliability of over 99.9%.
Crucial for Long-Term ROI
- Durability: An AS/RS is typically a long-term investment meant to last for over 20 years. High-quality racks use premium steel and excellent surface treatment processes to withstand daily handling and environmental erosion, effectively extending the racks’ lifespan and reducing repair and replacement costs.
- Adaptability: Professional rack manufacturers also consider future scalability and flexibility. Modular designs allow for easy addition of more aisles or height to the rack system when needed, accommodating a company’s future business growth.
How to Choose the Right AS/RS
When deciding whether and how to invest in an AS/RS, you can start with the following core questions to assess your needs.
Step One: Define Your Needs and Pain Points
First, you need to clearly define the problems you are currently facing and your future goals.
- What are the pain points of your current warehouse?
- Is space a problem? Is your inventory growing so fast that your current warehouse space is becoming tight?
- Is efficiency low? Can your order processing speed meet customer demands? Do you experience a backlog of orders during peak season?
- Are costs too high? Are labor and land costs constantly rising?
- Is management chaotic? Is your inventory accuracy low, making it difficult to trace and manage effectively?
- What are your future business growth expectations?
- How much do you expect your SKU count, order volume, or throughput to grow in the next 3-5 years?
- An AS/RS is a long-term investment, so you need to ensure it can meet your future growth needs and has enough room for expansion.
Step Two: Evaluate Your Goods’ Characteristics
Different types of AS/RS are suited for different types of goods. You need to carefully analyze your products.
- What are your goods?
- Are they large, full-pallet items (like beverages or appliances) or smaller items in totes or cartons (like electronic components, pharmaceuticals, or clothing)?
- If you mainly handle full pallets, a unit-load AS/RS might be your top choice.
- If you primarily handle small items and need fast picking, a mini-load AS/RS will be a better fit.
- Do your goods have special storage environment requirements?
- Do they need a constant temperature, constant humidity, refrigeration, or anti-static environment?
- If so, you need to choose an AS/RS system that can operate stably in these specific conditions.
Step Three: Analyze Your Budget and ROI
The initial investment for an AS/RS is significant, but it can bring substantial returns in the long run.
- What is your budget?
- Determine the maximum amount you can invest in an automated system. Remember, besides the hardware, you also need to consider costs for software (WMS/WCS), installation, commissioning, and training.
- What is your expected Return on Investment (ROI)?
- The ROI of an AS/RS typically comes from several areas: labor cost savings, increased operational efficiency, reduced land costs, etc.
- By quantifying these savings, you can calculate your ROI period. Generally, the ROI period for an AS/RS is between 3 to 7 years, depending on your business size and operational model.
Step Four: Choose the Right Partner
Choosing an experienced and technically reliable supplier is crucial.
- What is the supplier’s industry experience?
- Do they have successful cases in your industry?
- Are their solutions market-tested and proven?
- What about their technical strength and after-sales service?
- Does the supplier have a strong R&D team? Is their product technologically advanced?
- Can they provide timely and professional maintenance and technical support during system operation? If an AS/RS system fails, it can severely impact your business, so reliable after-sales service is critically important.
Conclusion
The future of AS/RS will include more intelligent system integration, more flexible and modular designs, and more sustainable green logistics. As professional rack manufacturers, we understand that the racks are the foundation of an AS/RS. Our expertise and products are designed to help you achieve all the automation goals mentioned above.
The future is here, and automation is an irreversible trend. Choosing us means choosing a professional partner who can provide you with a reliable, efficient, and scalable foundation for your AS/RS. We look forward to working with you to build the smart warehouse of the future.
