We, as racking manufacturers, have encountered numerous warehouse cases, and we responsibly want to inform our users that understanding the parts of racking is extremely important.
Only when you fully understand them can you truly grasp how to optimize storage efficiency, ensure operational safety, and extend the lifespan of your racking, among other benefits.
So, if you’re not yet familiar enough with the parts of racking, please keep reading! Let’s explore everything about the parts of racking together!

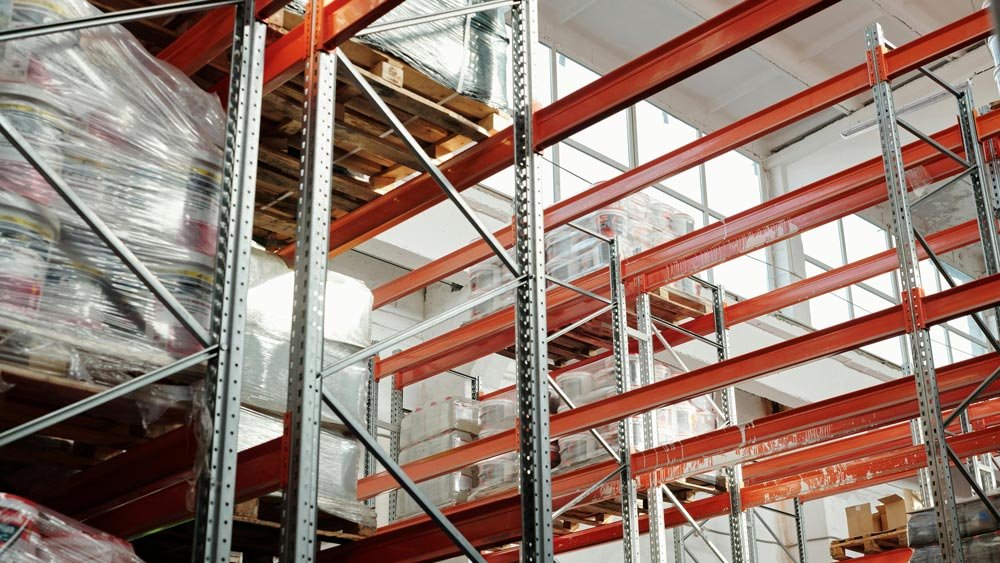

The Core Structure of Racking: Uprights and Beams

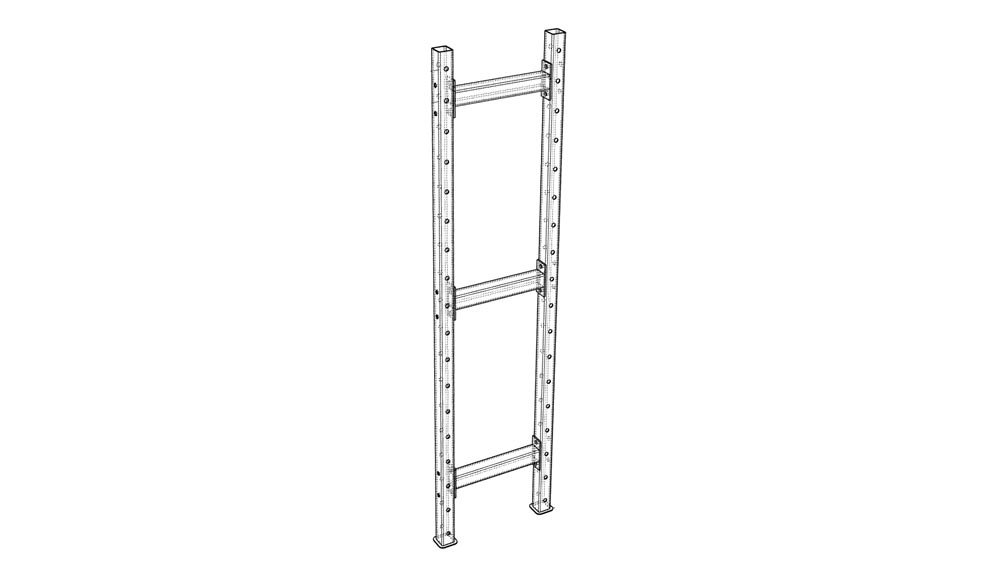

Upright / Column
First, let’s talk about the upright. You can think of it as the racking’s “legs” or “spine.” It stands vertically and is primarily responsible for bearing pressure from above and the sides, transmitting these loads down to the ground.
Key characteristics and functions of uprights:
- Primary Load Bearer: The upright is the main load-bearing component in the entire racking system. The weight of all goods stored on the racking is ultimately transferred via the beams to the uprights, and then from the uprights to the ground. Therefore, the strength and stability of the upright are crucial for measuring the safety of a racking system.
- Section Shape: You might notice that the upright’s cross-section is usually not a simple square or circle but rather C-shaped, H-shaped, or other irregular profiles. This is because these special section designs provide greater bending and torsional resistance, making them less prone to deformation under heavy pressure.
- Punching Design: The surface of the upright is covered with rows of holes. These holes aren’t just decorative; they are key for adjusting beam height. By inserting the connectors on the beams into different hole positions on the upright, you can easily adjust the storage height of each level to accommodate goods of varying heights, allowing for flexible utilization of storage space.
- Connectors: Uprights are typically connected to diagonal braces and horizontal braces via bolts or welding to form an upright frame. This is like adding “X”-shaped supports to the racking’s “legs,” greatly enhancing the overall stability and resistance to lateral deformation of the upright frame.
- Base Plate: The bottom of an upright usually has a base plate welded to it. This base plate’s purpose is to increase the contact area with the ground, dispersing the concentrated force borne by the upright. This prevents ground damage due to excessive pressure and also facilitates anchoring the racking to the floor with anchor bolts, further improving stability.
- Impact Protection: Because uprights are the outermost part of the racking, they are susceptible to accidental impacts from material handling equipment like forklifts. Therefore, in practical applications, we typically install column protectors or guard rails at the bottom of the uprights to protect them from damage, extending their lifespan and ensuring safety.

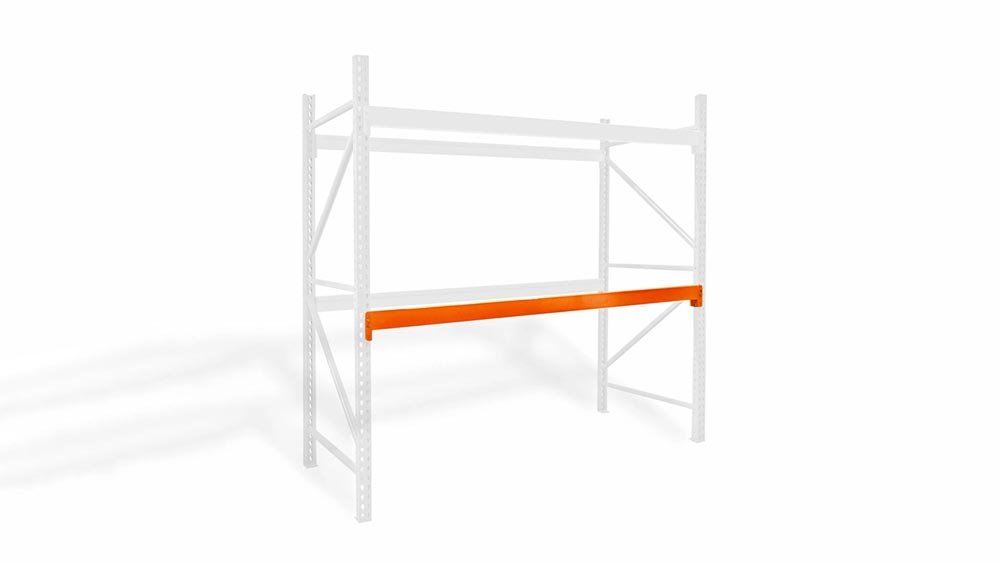

Beam
Next is the beam. If the upright is the spine, then the beam is the “arm” of the racking. It’s placed horizontally, with both ends slotted into the upright’s holes. Its primary responsibility is to directly bear the weight of goods or pallets and transfer that weight to the uprights at both ends.
Key characteristics and functions of beams:
- Direct Load Bearing: The beam is the component that directly holds goods or pallets. Its load-bearing capacity directly determines the maximum load per level of the racking. Insufficient beam strength can lead to deformation or even breakage.
- Box Beam or Welded Beam: To enhance load capacity and torsional resistance, beams often feature a box-shaped section or a special shape formed by welding two C-shaped steel sections together. These designs maximize the material’s strength.
- Hook Connection: The ends of beams usually have specially designed connection hooks. These hooks can be easily slotted into the holes of the uprights. This connection method makes racking installation and dismantling quick and also facilitates level height adjustment.

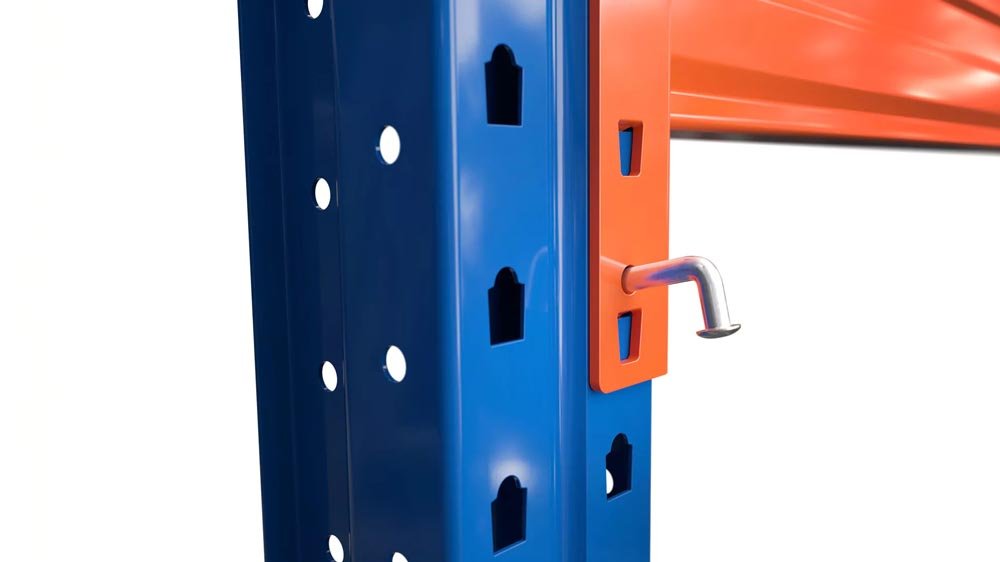

- Safety Pin / Safety Lock: To prevent beams from dislodging due to external forces (such as accidental forklift impacts or vibrations during goods retrieval), the beam connection hooks typically incorporate a safety pin or safety lock. This small but crucial component firmly secures the beam to the upright, significantly enhancing racking safety.
- Diverse Types: Depending on load requirements and connection methods, there are many types of beams, such as P-type beams, box beams, etc., with varying load capacities and applications. Manufacturers will recommend suitable beams based on specific customer needs.
- Accessory Compatibility: Beams are often used with various accessories to accommodate different types of goods storage. For example:
- Pallet Support Bar: Installed between two beams to provide additional support for pallets, increasing stability.
- Steel Decking / Wire Mesh Decking: Laid directly on the beams to form a continuous platform, suitable for storing bulk goods or irregularly shaped items.
Auxiliary Components for Enhanced Functionality and Safety
These components are typically configured based on specific usage requirements and safety regulations. Their presence transforms racking from a simple storage structure into an intelligent, safe storage system.
Structural & Stability Auxiliary Components
These components primarily aim to enhance the overall stability and load-bearing capacity of the racking.
- Diagonal Brace and Horizontal Brace:
- Function: As mentioned before, these are vital components that connect between uprights, forming the upright frame. They typically connect in an “X” or “H” shape, primarily used to resist lateral forces, prevent the racking from swaying or tipping, and ensure the stability of the entire structure.
- Analogy: They’re like the diagonal and horizontal bars on a bicycle frame, making it sturdier and less prone to deforming.
- Anchor Bolt:
- Function: These are crucial for securing the racking to the ground. Expansion bolts are used through the holes in the upright’s base plate to firmly anchor the racking to the warehouse floor.
- Importance: For high-bay racking or racking at risk of forklift impacts, anchor bolts are the last line of defense against tipping and are extremely important. They effectively prevent racking displacement or overturning during earthquakes, forklift mishaps, or unbalanced loads.
- Pallet Support Bar:
- Function: These are short bars, usually U-shaped or hat-shaped, installed between two beams. Their main function is to provide additional support for the bottom of pallets, distribute the pallet’s weight, increase pallet placement stability, and prevent pallets from deforming or falling between beams.
- Applicable Scenarios: Especially suitable for storing smaller pallets, pallets with irregular bottom structures, or pallets carrying heavy loads.
Load-Bearing Auxiliary Components for Storage Locations
These components directly impact how goods are stored and the flexibility of storage.
- Steel Decking / Wire Mesh Decking:
- Function: Laid on top of the beams to form a continuous flat surface.
- Steel Decking: Typically made of cold-rolled steel plates, with a flat surface, suitable for storing loose items, cartons, or irregularly shaped goods.
- Wire Mesh Decking: Made of welded steel wire mesh, offering good light penetration and ventilation, aiding in the operation of fire sprinkler systems, and facilitating inspection of goods below. Often used for storing bulk or boxed goods.
- Selection: The choice of decking depends on the type of goods stored, weight, and fire safety requirements.
- Back Mesh / Side Mesh:
- Function: Installed at the rear or side of the racking to form a barrier.
- Safety: Primarily used to prevent goods from accidentally falling off the back or side of the racking, especially when the racking is against a wall or next to a pedestrian aisle. They effectively protect personnel and equipment.
Safety and Protection Components
These components are designed to protect the racking itself from damage and ensure the safety of warehouse operators.
- Column Protector / Corner Guard:
- Function: Installed at the base of the racking upright, made of steel plate or high-strength plastic, and shaped like an L or U.
- Importance: It’s the “armor” of the racking, effectively absorbing and dispersing accidental impact forces from forklifts and other material handling equipment, preventing the upright from being directly impacted, deformed, or damaged. Once an upright is damaged, the stability of the entire racking system is threatened, making these protective components extremely vital.
- Guard Rail / Aisle Guard:
- Function: Similar to roadside barriers, installed on both sides of racking aisles or in areas prone to impact.
- Importance: They provide a physical barrier, guiding forklifts and personnel along designated routes, preventing forklifts from directly hitting the racking or other equipment within the warehouse, thereby minimizing the possibility of accidents.
- Safety Pin / Safety Lock:
- Function: Although mentioned earlier, its importance is re-emphasized here. These are small components installed at the beam-to-upright connection, typically serving as insurance to prevent accidental beam dislodgement.
- Importance: Vibrations during forklift operations or occasional upward impacts can cause beams to shift. Safety pins are designed to lock the beam in place, preventing it from detaching from the upright and thereby avoiding the risk of goods falling.
Maintenance and Inspection of Racking Components
Why is Maintenance and Inspection Crucial?
- Ensuring Personal Safety: This is the primary reason. If a racking system develops structural issues, such as deformed uprights or dislodged beams, it can lead to goods falling or even racking collapse, causing serious injury to warehouse staff. Regular inspection can identify these hidden dangers in advance.
- Protecting Goods: Damaged racking not only threatens personnel but can also lead to damage to stored goods, resulting in economic losses.
- Extending Racking Lifespan: Timely detection and repair of minor issues can prevent them from developing into major problems, thereby effectively extending the service life of the racking system and reducing long-term operating costs.
- Ensuring Operational Efficiency: Deformed or damaged racking components can affect the smooth operation of forklifts, reducing retrieval efficiency. A fully intact racking system ensures smooth logistics.
- Compliance with Regulations: Many countries and regions have regulations and standards regarding warehouse racking safety. Regular inspection and maintenance are crucial for meeting these compliance requirements, avoiding potential legal risks.
How to Conduct Daily and Regular Racking Component Inspections?
Daily Inspection: Everyone is a Safety Officer
Daily inspections are like checking if doors and windows are closed before leaving home in the morning – quick and simple, but very important. On-site warehouse managers and forklift operators are the best candidates for daily inspections.
- Inspection Time: Daily or weekly.
- Key Inspection Points:
- Any visible deformation or damage: Especially on uprights, beams, and connections. Visible bending, dents, or twists are warning signs.
- Beam security: Check if the hooks at both ends of the beam are fully inserted into the upright’s holes, and if safety pins or locks are in place and engaged. This is crucial for preventing accidental beam dislodgement.
- Damage to column protectors/guard rails: Check if these protective components show signs of impact, deformation, or looseness. They are the first line of defense for the racking’s “skeleton.”
- Loose floor anchor bolts: Observe if the anchor bolts at the upright base plate show any signs of loosening or coming out.
- Signs of overloading: Check if beams or decking show significant bowing, which could be a sign of overloading. Also, remind operators to always adhere to the maximum load capacity markings on the racking.
- Proper goods stacking: Are goods extending beyond the racking boundaries? Are they stacked stably? While not part of the racking components themselves, these are closely related to racking safety.
Regular Inspection: Professional “Health Check”
Regular inspections require more experienced professionals (who can be internally trained employees or third-party professional organizations). They will use specialized tools and knowledge for a more in-depth assessment.
- Inspection Time: Usually recommended every 6 months to 1 year; the specific frequency depends on racking usage intensity, environmental conditions, and goods characteristics.
- Key Inspection Points (in addition to daily inspection content):
- Upright verticality check: Use a spirit level or laser measuring device to check if uprights are vertical and if there’s any tilt. Even slight tilts can lead to uneven stress distribution.
- Connection tightness: Check if all bolted connections (e.g., diagonal braces, horizontal braces to upright connections) are tight and if there’s any looseness or rust.
- Surface coating integrity: Check if the racking surface coating has large areas of peeling or rust, which will affect material durability.
- Floor condition: Check if the floor beneath the racking shows signs of settlement or cracks, as this will affect the overall stability of the racking.
- Damaged component assessment: For any damaged components found, professionals will assess the extent of the damage and determine whether repair, reinforcement, or immediate replacement is needed. Never weld or repair with non-standard parts privately.
- Safety signage check: Ensure all safety signs (e.g., load plates, safety warning signs) are clearly visible and correct.
- Structural damage assessment: For any suspected structural damage, a professional structural engineer needs to conduct an evaluation.
What to Do If Problems Are Found?
Once any issues are discovered during inspection, especially those involving structural integrity and load capacity, immediate action must be taken:
- Isolate: Immediately isolate the problem area and prohibit personnel and forklifts from approaching.
- Unload: Immediately unload goods from the affected storage location.
- Assess: Have professionals assess the extent of the damage.
- Repair/Replace: Based on the assessment, perform professional repairs or replace damaged components. Never weld or repair with non-standard parts privately.
- Record: Detail every inspection and repair, including date, issues found, actions taken, repair personnel, etc.
Professional Advice from a Manufacturer: How to Choose the Right Racking Components
Clearly Define Your “Storage Needs”
This is the foundation for all choices, just like knowing whether a building is for living or for a warehouse before construction. We will discuss these questions in depth with our clients:
- What goods will be stored?
- Type: Are they palletized goods, boxed loose goods, long materials (like steel pipes), coils, or irregularly shaped items? Different goods require different types of beams, decking, or special accessories.
- Dimensions: What are the length, width, and height of the goods? This directly determines the racking’s level height, width, and depth.
- Weight: What is the maximum load for a single pallet or a single level? This is the most crucial indicator for selecting the load capacity of uprights, beams, and decking. We will provide component load recommendations within a safety factor based on the weight provided by the client.
- How will goods be accessed?
- Equipment: What type of forklift will be used (reach truck, counterbalance forklift, narrow aisle forklift, etc.)? This will influence aisle width, racking height, and racking structure design.
- Frequency: Is the goods retrieval frequency high? High frequency might require more durable components or a more automated racking system.
- How big is the warehouse space?
- Available Area and Height: What are the warehouse’s floor dimensions and clear height? This determines the overall racking layout and the maximum achievable height. We will help clients maximize vertical space utilization.
- Floor Conditions: Is the floor flat? What is its load-bearing capacity? This relates to anchor bolt fixation and the overall stability of the racking.
Consider “Safety and Compliance” – This is the Bottom Line!
As manufacturers, we always prioritize safety. We will emphasize:
- Load Capacity Matching: Ensure that the selected upright and beam load capacities must exceed the actual maximum weight of stored goods, with a sufficient safety margin. We will provide detailed load calculations and load diagrams.
- Structural Stability: Ensure the diagonal and horizontal brace configurations of the upright frames are reasonable, and that the quantity and specifications of anchor bolts meet standards to resist overturning and lateral forces.
- Protective Measures: Strongly recommend configuring column protectors, guard rails, and other protective components, especially in areas with frequent forklift operations. This significantly reduces the risk of accidental impact to the racking, extends racking lifespan, and protects personnel safety.
- Safety Signage: Ensure that racking clearly displays maximum load capacity, safe operating procedures, and other warning signs, and remind clients to provide relevant training to their employees.
- Compliance with Standards: Our manufactured components comply with industry standards (e.g., RMI, FEM, etc.). We will explain the compliance of selected components to clients and advise them to conduct regular racking safety inspections.
Weigh “Investment and Long-Term Benefits”
We will guide clients to consider investment from a long-term perspective, not just focusing on initial costs:
- Material and Craftsmanship: Inform clients about the impact of different materials (e.g., high-strength steel) and surface treatments (e.g., powder coating, galvanization) on racking lifespan and maintenance costs. High-quality components might have slightly higher initial investment, but in the long run, they will be more economical due to their longer service life and lower maintenance requirements.
- Modularity and Scalability: Recommend choosing standardized, modularly designed racking components. This way, if clients need to adjust layouts, increase storage capacity, or change storage types in the future, they can conveniently expand, modify, or dismantle, avoiding duplicate investment.
- Supplier’s Professional Service: Besides the product itself, the design, installation, after-sales service, and safety training provided by the manufacturer are also important factors to consider when selecting racking components. We will emphasize the comprehensive support we provide to ensure clients have no worries.
Consider “Environmental Factors”
- Temperature and Humidity: Is the warehouse environment normal temperature, low temperature (cold storage), or high temperature? Is humidity high? Different environments may require components with special materials or surface treatments to prevent corrosion or embrittlement.
- Special Requirements: Are there special requirements for dust prevention, anti-static, fire safety, etc.? For example, a fire sprinkler system might necessitate selecting wire mesh decking to ensure water penetration.
Conclusion
As I stated at the beginning, the parts of racking are extremely important, and I believe you’ll share the same sentiment after reading this article.
Therefore, when purchasing racking, remember not to be greedy for cheap products; those significantly below market price will always have a special reason. And when choosing a supplier, you also need to consider their professionalism and reliability.
