How to Determine Cantilever Rack Capacity?

I believe that we often contact the warehouse shelves and are not unfamiliar with cantilever racks. Its design without front columns is very convenient for long and bulky goods storage. But do you know how to determine the capacity of the cantilever rack?

Regardless of the type of rack, it is very important to choose the right load capacity when purchasing, which is related to the safety issue. So next, whether you have contact with the cantilever rack or not, I will tell you how to determine the load capacity of the cantilever rack in an easy-to-understand way.

Understanding the Basic Components of Cantilever Racks

The structure of a cantilever rack is relatively simpler than other types of shelving (like gravity flow racks etc.). It primarily consists of four main parts, which I’ll explain in detail:

Column / Upright

The column is the main body of the cantilever rack and its most critical load-bearing component.

You can think of it as the human spine. All weight is ultimately transferred through the cantilever arms to the column, and then from the column to the ground.

Function: Supports the entire racking system and bears the vertical loads from the cantilever arms.

Features:

• Typically made from high-strength profiles like H-beams, I-beams, or specially designed C-channel steel.
• Columns have pre-drilled holes for connecting and adjusting the height of the cantilever arms.
• Depending on requirements, columns can be single-sided (arms on one side only) or double-sided (arms on both sides), with double-sided columns significantly increasing storage capacity.

Base

The base is the foundation of the column; it connects to the column and provides stability.

You can think of it as the human feet – stability depends entirely on it.

Function: Secures the column, provides overall stability to the rack, prevents tipping, and evenly distributes the rack’s weight to the ground.

Features: Usually made from H-beams or other robust steel, connected to the column via bolts or welding. The length of the base affects the rack’s stability and is typically slightly longer than the cantilever arm to provide better balance.

Cantilever Arm

Cantilever arms are the components that directly hold the goods; they extend horizontally from the column.

This is the most unique part of the cantilever rack, and where it gets its name.

Function: Bears the load of the goods and serves as the direct support structure for items.

Features:

• Typically made from high-strength steel, with a cross-section that can be rectangular, tapered, or specially shaped.
• Connected to the column’s holes via bolts or pins, allowing for vertical adjustment based on the height requirements of the goods.
• The arm’s length and thickness determine its single-arm load capacity.
• Some cantilever arms have end stops (or pins) at their tips to prevent goods from sliding off, enhancing safety.

Bracing / Horizontal & Diagonal Braces

Braces are used to connect different columns, providing horizontal and diagonal support.

You can think of them as the beams and diagonal supports of a house, enhancing overall stability and rigidity.

Function: Increases the overall stability and rigidity of the rack, preventing swaying or deformation when subjected to lateral forces.

Features: Usually made of square or round tubes, connected between columns via bolts. They can be horizontal (horizontal braces) or diagonal (diagonal braces), collectively forming a stable structure.

Core Principles of Cantilever Rack Load Capacity

The core principles involved in determining the load capacity of a cantilever rack primarily revolve around two aspects: moment balance (or bending resistance) and material strength (especially tensile and compressive strength).

Moment Balance (or Bending Resistance)

This is the most crucial point for understanding cantilever rack load capacity.

What is moment?

A moment is the measure of a force’s tendency to cause rotation around a point. Simply put, it’s “force multiplied by the lever arm.”

Imagine you’re tightening a screw with a wrench: the more force you apply and the longer the wrench (the longer the lever arm), the easier the screw turns. This is the effect of the moment.

In a cantilever rack:

• When goods are placed on a cantilever arm, their weight creates a downward force.
• This force acts on the cantilever arm. The further it is from the column (the longer the lever arm), the greater the bending moment it generates at the column connection point.
• The cantilever arm and column must be strong enough to resist this bending moment without permanent deformation or fracture. Core principle manifestation:
• The longer the cantilever arm, the greater the bending moment generated under the same load. This is why longer arms typically have lower load capacities than shorter arms.
• Goods placement: If the center of gravity of the goods is close to the end of the cantilever arm, the bending moment generated is maximized, putting the most stress on the rack. Therefore, we always recommend placing goods as close to the column as possible, or distributing them evenly, to reduce the bending moment on individual arms.
• Material’s bending strength: The material of the cantilever arm and column must have sufficient bending strength to resist the bending moments generated by the goods. This is why they are typically made from high-strength steel and have specific cross-sectional shapes (like H-sections, I-sections) that provide better bending resistance.

Material Strength

In addition to resisting bending moments, the various components of the rack must also be able to withstand forces. This primarily involves the material’s:

Compressive Strength:

• Primarily evident in the column. The column bears the vertical downward pressure from all the cantilever arms and goods above.
• The column must have sufficient compressive strength to withstand these weights without being crushed or buckling (like a slender rod bending under compression).
• The column’s cross-sectional dimensions, wall thickness, and material’s modulus of elasticity (stiffness) all affect its compressive capacity.

Shear Strength:

• Shear forces are generated at the connection points between the cantilever arm and the column, as well as within the column itself.
• The material and connection method must be able to resist these shear forces, preventing the connection from being sheared or torn.

Tensile Strength:

• While not as obvious as compressive and bending strength, in certain loading situations (e.g., if the rack is subjected to external impact, or certain connection components), the material will also be subjected to tensile forces.
• The material’s tensile strength ensures it will not break when pulled.

Key Factors Affecting Cantilever Rack Load Capacity

What factors influence the load capacity of a cantilever rack? This is a crucial question because its capacity is a result of multiple interacting factors. Understanding these factors allows us to better select and use cantilever racks.

Arm Characteristics

• Length:
  • Explanation: The longer the cantilever arm, the greater the bending moment (M = F × L, where F is force and L is lever arm) generated by the goods at the column connection point under the same load. It’s like holding a heavy object: the straighter your arm, the more effort it feels. Arm length L has a huge impact on the bending moment.
  • Impact on Capacity: Longer arms generally have lower load capacities.
  • Calculation Method: Manufacturers provide single-arm load capacities based on the arm’s length, material, and cross-sectional dimensions. For example, an arm of the same material and cross-section that is 1 meter long will certainly have a lower capacity than one that is 0.8 meters long.
• Cross-sectional Shape & Size:
  • Explanation: The cross-sectional shape (e.g., rectangular, I-beam, tapered) and dimensions (height, width, wall thickness) of the cantilever arm directly affect its moment of inertia (I). A larger moment of inertia means greater resistance to bending deformation.
  • Impact on Capacity: Larger cross-sectional dimensions and more rational shapes (e.g., I-beams have better bending resistance than square tubes) result in higher load capacity.
  • Calculation Method: This involves structural mechanics calculations, usually performed by the manufacturer. They calculate the maximum allowable bending moment based on the arm’s cross-sectional properties, material’s yield strength (Fy​), and safety factor, then derive the single-arm load capacity.
• Material:
  • Explanation: Cantilever arms are typically made from high-strength steel. The steel’s yield strength (Fy​) is a key indicator, representing the maximum stress the material can withstand before permanent deformation.
  • Impact on Capacity: Steel with higher yield strength has greater load capacity.
  • Calculation Method: This falls under material science and structural engineering, used to determine the theoretical load limits of different materials at specific dimensions.

Column Characteristics

• Height:
  • Explanation: The taller the column, the greater its slenderness ratio, and the higher the risk of buckling. Buckling is the sudden bending instability of a long, slender member under compression.
  • Impact on Capacity: Taller columns generally have reduced overall load capacity (especially resistance to vertical loads).
  • Calculation Method: Engineers calculate a column buckling load capacity based on its height, cross-sectional properties, and material. This involves Euler’s buckling formula or more complex buckling analysis.
• Cross-sectional Size & Shape:
  • Explanation: Similar to cantilever arms, the column’s cross-sectional shape and size affect its compressive strength and bending stiffness.
  • Impact on Capacity: Larger cross-sectional dimensions, thicker walls, and cross-sections with better bending performance (e.g., heavy H-beams) result in stronger column load capacity.
• Material:
  • Explanation: Columns also use high-strength steel. Their compressive strength and modulus of elasticity (E) determine their ability to resist vertical loads and deformation.
  • Impact on Capacity: Materials with higher strength and modulus of elasticity have better load capacity.

Connection Method & Stability

• Connection method of cantilever arm to column:
  • Explanation: Bolted, pinned, or welded connections. The strength and rigidity of the connection point directly affect the efficiency of force transfer and the overall integrity of the rack.
  • Impact on Capacity: Strong, reliable connection methods ensure effective moment transfer and prevent localized failure, thereby increasing overall load capacity. Loose or improperly designed connections can become weak links.
• Horizontal and Diagonal Bracing:
  • Explanation: Braces connect multiple columns into a single, stable framework. Through the principle of triangular stability, they significantly enhance the rack’s lateral and longitudinal stability, resisting lateral forces.
  • Impact on Capacity: A complete bracing system prevents the rack from swaying or tipping under load, improving the rack’s overall stable load capacity.
• Base size and anchoring method:
  • Explanation: The size of the base (especially its length) and how it’s anchored to the ground (e.g., anchor bolts) directly impact the rack’s resistance to overturning.
  • Impact on Capacity: A wide and securely anchored base effectively prevents the rack from tipping when carrying heavy loads.

Load Distribution Method

• Even Distribution vs. Concentrated Distribution:
  • Explanation: Even distribution means the load’s weight is spread out evenly across multiple cantilever arms. Concentrated distribution means most of the weight is on one or a few arms, or concentrated near the end of an arm.
  • Impact on Capacity: Even distribution maximizes the rack’s overall load capacity and reduces localized stress. Concentrated distribution causes specific arms to bear greater bending moments, potentially rapidly exceeding their single-arm load limit.
• Calculation Methods:
  • Single Arm Capacity: Usually provided by the manufacturer.
  • Capacity per Level: Single arm capacity × number of cantilever arms on that level (only applicable for even distribution).
  • Column Capacity: The maximum total weight of goods on all cantilever arms connected to that column.
  • Bucket Effect: The load capacity of the entire racking system is determined by its weakest link.
  • You need to verify separately:
    • Whether the capacity of each single arm meets the weight of the single item or the weight borne by a single arm that you are placing.
    • Whether the total capacity of all arms on each level meets the total weight of the goods on that level.
    • Whether the total capacity of each column meets the total weight of the goods on all arms connected to it.
  • If the actual load on any of these links exceeds its design load capacity, the entire racking system is unsafe.

Load Capacity Calculation Method

Accurately calculating the load capacity of a cantilever rack is a complex process, requiring professional structural engineers to use software for finite element analysis.

However, we can understand the concept to gain a clear grasp of the basic logic behind this process.

Before we begin, we need to keep a core idea in mind: Ensure that the stress on all components under the most unfavorable working conditions does not exceed the material’s allowable stress, and that deformation remains within acceptable limits.

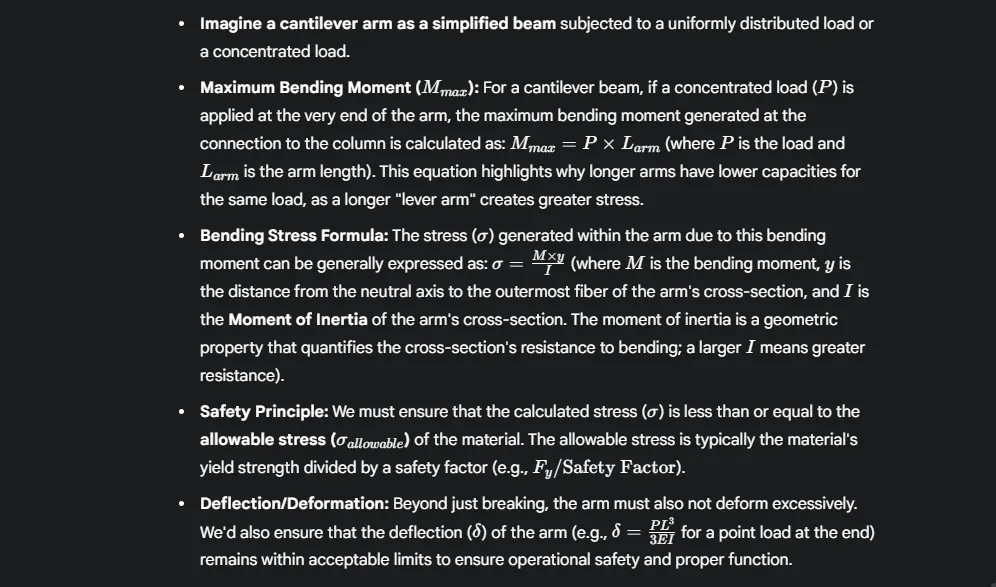

A simplified estimation of single-arm capacity (for understanding only, not for actual design):

Manufacturers perform more complex calculations, considering the following factors:

• Material properties: Yield strength, modulus of elasticity, etc.
• Section properties: Moment of inertia, torsional moment of inertia, etc.
• Safety factor: National standards and industry codes require a safety factor (typically 1.65 to 2.0 or higher) to ensure the rack has sufficient margin under design loads to account for manufacturing tolerances, material defects, wear and tear, or slight overloading.
• Connection point strength: Local stress concentration analysis at the connection point between the cantilever arm and the column.
• Buckling analysis: Stability of the column under vertical pressure.
• Seismic/wind loads: In some regions, the effects of earthquakes and wind on the rack also need to be considered.

Practical Considerations and Optimization

Every warehouse situation is different. Perhaps the cantilever rack you’re about to use is already in the warehouse, or even second-hand, and you don’t have much information about it. In such cases, determining the cantilever rack’s load capacity can become a bit troublesome.

But you don’t need to worry; I’ll tell you how to find the information you need.

Look for Manufacturer’s Identification or Stamp

This is the most direct and reliable method. Usually you can find the relevant brand/manufacturer logo on the surface of the cantilever rack, where the probability is that the key load capacity parameters will be indicated.

Where to look?

• Column/Upright: Prioritize looking at the column. There are three areas where you can usually see a metal nameplate or stamp on the side, bottom and top.
• Cantilever Arm: There might also be a stamp or sticker at the base (where it connects to the column) or on the side of each cantilever arm.
• Bracing/Beams: Sometimes auxiliary information can be found on these components as well. What information to look for?
• Manufacturer Name or Logo: Identifies the company that produced it.
• Model Number: The specific model of the rack or component.
• Single Arm Capacity: For example: “1000 lbs/Arm” or “450 kg/Arm.” This typically refers to the maximum capacity of a single cantilever arm under standard safety factors.
• Column Capacity: For example: “15000 lbs/Column” or “6800 kg/Column.” This refers to the total vertical load that a single column (whether single-sided or double-sided) can bear.
• Manufacturing Date or Batch Number: Helps in tracing product information.

What if you can’t find it?

• Contact the Manufacturer: If you can identify the manufacturer, try contacting them. Provide photos of the rack and approximate dimensions, and they might be able to help you find relevant data.
• Consult Professionals: If manufacturer information is missing, or the rack is very old, it is crucial to have a professional rack supplier, structural engineer, or third-party inspection agency conduct an on-site assessment. They will take measurements and perform calculations based on the rack’s material, dimensions, thickness, connection method, etc., and provide an evaluation report. Never use a rack with unknown load capacity blindly; it is extremely dangerous.

External Environment and Operational Limitations

Even if the rack itself meets load capacity standards, the external environment and daily operations can also affect its safe use.

1. Ground Conditions
   • Consideration: The rack base requires a flat, firm, and sufficiently load-bearing floor. If the ground is uneven or lacks sufficient strength, the rack may tilt, settle, or even suffer structural damage.
   • Optimization: Conduct floor load-bearing capacity tests before installation. Ensure floor flatness meets installation requirements and securely fix the rack to the ground using appropriate anchor bolts. For old floors, ground reinforcement may be necessary.
2. Temperature and Humidity
   • Consideration: Extreme temperature changes can cause thermal expansion and contraction of metal materials, and prolonged exposure to high humidity can accelerate metal corrosion, weakening material strength.
   • Optimization: Maintain a stable warehouse environment. For outdoor or special environment racks, use materials with anti-corrosion treatment (such as hot-dip galvanizing, special coatings) and regularly check for corrosion.
3. Forklift Operation and Collision Risk
   • Consideration: Forklifts are common handling tools in warehouses but are also a major cause of rack damage. Accidental impact from forklifts on rack columns or cantilever arms can lead to structural deformation or even collapse.
   • Optimization:
     • Install Protective Barriers: Set up anti-collision guards at the ends of rack aisles or around columns to provide physical protection.
     • Define Clear Aisles: Ensure forklift aisles are wide enough to reduce the chance of collisions.
     • Train Operators: Provide professional training for forklift drivers, emphasizing safe operating procedures, and prohibiting speeding or sharp turns.
     • Regular Inspections: Check racks for signs of impact, deformation, paint peeling, etc., and address issues promptly.

Strategies for Optimization and Enhancing Load Capacity

In some situations, you might need to optimize the load capacity of existing racks, or consider future needs during the design phase.

1. Structural Reinforcement
   • Add Braces: Adding more horizontal or diagonal braces between existing rack columns can significantly enhance the rack’s overall rigidity and stability, improving its resistance to lateral forces.
   • Thicken or Strengthen Cantilever Arms: If single-arm capacity is insufficient but the main rack structure is otherwise sound, consider replacing with thicker, larger cross-section, or internally reinforced cantilever arms.
   • Increase Column Section: For columns with insufficient load capacity, additional steel plates or profiles can be welded to their exterior for reinforcement, but this requires professional evaluation and construction.
2. Even Load Distribution
   • Strategy: Always emphasize distributing cargo weight evenly across all supporting cantilever arms. Avoid stacking all heavy items on a single arm or concentrating them at the very end of an arm.
   • Benefits: Even distribution maximizes the use of the rack’s design load capacity, reduces localized stress, and extends the rack’s service life.
   • Implementation: Develop clear cargo placement guidelines in warehouse management and train operating personnel.
3. Regular Maintenance and Inspection
   • Strategy: Establish a strict system for regular rack inspections.
   • Inspection Contents:
     • Visual Inspection: Observe the rack for obvious deformation, bending, cracks, corrosion, or paint peeling.
     • Bolt Tightness: Check if all connection bolts are loose and tighten them promptly.
     • Connection Integrity: Check if the connections between cantilever arms and columns are intact, free of wear or looseness.
     • Anchor Bolts: Check if anchor bolts are loose or pulled out.
     • Ground Condition: Observe the ground for cracks or settling.
   • Benefits: Timely detection and repair of potential problems prevent small issues from escalating into major accidents, effectively extending the rack’s safe service life.
4. Selecting High-Strength Materials and Optimized Design
   • Strategy (for new purchases): When purchasing new racks, choose racks from reputable brands that use high-strength steel (e.g., Q345B) in their manufacturing.
   • Design Optimization: Professional rack suppliers will use optimized designs based on your cargo characteristics and storage needs, such as tapered cantilever arm designs (thicker at the base, thinner at the end, better conforming to moment distribution principles) to save material while ensuring load capacity, or special cross-section columns to improve buckling resistance.
   • Benefits: Guarantees rack quality and load capacity from the source, reducing future safety risks and maintenance costs.

Common Errors and Safety Warnings

Understanding these common errors and warnings can help you avoid hazards in actual operations and ensure the safety of personnel and property.

Overloading

Common Errors:

• Exceeding single arm capacity: Placing cargo weight on a single cantilever arm that exceeds its design load capacity.
• Exceeding capacity per level: The total weight of cargo placed on all cantilever arms on the same level exceeds that level’s design load capacity (especially when cargo is concentrated on a few arms).
• Exceeding total column capacity: The total weight of cargo placed on all cantilever arms connected to a single column exceeds that column’s design load capacity.
• Underestimating load capacity: Inaccurate calculation of actual cargo weight or misunderstanding of the rack’s marked capacity.

Safety Warning:

• Consequences: Rack structural deformation, bending, fracture, or even complete collapse. This can lead to casualties, cargo damage, equipment damage, and significant economic losses.
• Remember: Always strictly adhere to the load capacity marked by the manufacturer. Before placing cargo, always know its weight and ensure an even load distribution.

Uneven Load Distribution

Common Errors:

• Cargo center of gravity off-center: Placing heavy items at the very end of the cantilever arm, instead of closer to the column or evenly distributed. This creates the maximum bending moment, putting extreme pressure on the cantilever arm.
• One side too heavy: Placing a large amount of heavy cargo on one side of a double-sided cantilever rack while the other side is lighter or empty, leading to a severe shift in the rack’s center of gravity, which could cause tilting or instability.
• Insufficient span: For longer cargo, using only two or three arms for support instead of arranging enough support points based on cargo length and weight, leading to concentrated load on the cantilever arms.

Safety Warning:

• Consequences: Cantilever arms bend, permanently deform, or even fracture due to excessive localized stress; the rack as a whole becomes unbalanced, tilts, increasing the risk of collapse.
• Remember: Place the cargo’s center of gravity as close to the column as possible. Long items should be supported by a sufficient number of cantilever arms to distribute the weight evenly. For double-sided racks, try to maintain a balanced load on both sides.

Impact Damage

Common Errors:

• Improper forklift operation: Forklift drivers accidentally colliding with rack columns, cantilever arms, or braces when turning, backing up, or lifting cargo.
• Falling cargo impact: Cargo accidentally falling during placement or retrieval, impacting the rack structure.

Safety Warning:

• Consequences: Rack components (especially columns and cantilever arms) suffer visible or imperceptible deformation, cracks, or displacement. This damage severely weakens the rack’s load capacity and stability, making it prone to collapse even when carrying normal weights in the future.
• Remember: Strictly regulate forklift operations, ensure clear aisles, and install protective barriers in areas prone to impact. Regularly inspect racks for signs of impact. If any deformation or damage is found, even minor, immediately unload the affected area and have a professional assess and repair it.

Unauthorized Modification or Improper Repair

Common Errors:

• Unauthorized welding or cutting: Welding, cutting, or drilling on the rack structure without professional engineer assessment, altering the original structural stress characteristics.
• Using non-original parts: Using parts that do not meet specifications or quality standards for replacement or repair.
• Non-professional repairs: Allowing untrained or unauthorized personnel to repair the rack.

Safety Warning:

• Consequences: Any unauthorized or unprofessional modification can weaken the rack’s structural strength, or even completely alter its design load capacity, leading to catastrophic failure.
• Remember: Rack modifications and repairs must be carried out by the manufacturer or professional rack service providers. Repairing and replacing parts involves ensuring that they meet the manufacturer’s strength requirements for the part.

Lack of Regular Inspection & Maintenance

Common Errors:

• Neglecting daily inspections: Not performing regular daily or monthly inspections of the rack.
• Ignoring damage: Discovering minor rack deformation, loose bolts, corrosion, etc., but not taking it seriously or delaying action.
• No maintenance plan: Not establishing a systematic rack maintenance and inspection plan.

Safety Warning:

• Consequences: Over time, minor wear and tear and damage accumulate, eventually leading to rack failure. This is like a tree: even if the wind isn’t strong, if the trunk is rotten, it will fall.
• Remember: Develop and strictly implement a regular rack inspection and maintenance plan. Address or report any issues found immediately, regardless of their size. Damaged components must be repaired or replaced promptly.

Conclusion

Finally, I believe you now have your own ideas about “how to determine the load capacity of a cantilever rack.” Regardless of your situation, just remember to accurately determine the cantilever rack’s load capacity and use it within reasonable limits.

If you haven’t yet purchased the cantilever rack you need, finding a professional rack manufacturer is straightforward. You just need to tell them your storage requirements, and they will use their expertise to solve everything for you!

And we are just such a group of people. If you are currently looking for a suitable cantilever rack manufacturer, feel free to contact us! Leave us your contact information, and we will provide you with a detailed quote and product information within 12 hours, no matter where you are in the world!
